Main Features Non-stop hydraulic safety tines (optional) for highquality
work even in the most difficult conditions. In the high
clearance capacity allows for operation at high speed
and in the presence of obstacles.
The rear hydraulic hitch enables the hitching of mounted
or semi-mounted machines and reduces the number of
passes.
The pneumatic depth wheels, dimensions 10.0/75x15.3, support the machine during operation.
The straight singlebeam frame maintains a reduced
cantilever and can be combined with a rear mounted or semi-mounted tool.
Technical specifications • Tubular frame 200 x 200 mm
• Clevis hitch, category 3
• Rear hitch, category 3
• Folding by 2 jacks + hydraulic locking
• QST tine, thickness 30 mm, adjustable height
• Shear bolt safety device
• Signalling and lighting kit
Options:
• Depth wheels 10.0/75x15.3
• Curved tine, height 900 mm, non-stop hydraulic safety device
• Curved tine, height 900 mm, shear bolt safety device
• Reduction gearing of PTO shaft 1’’ ¾ 6 splines

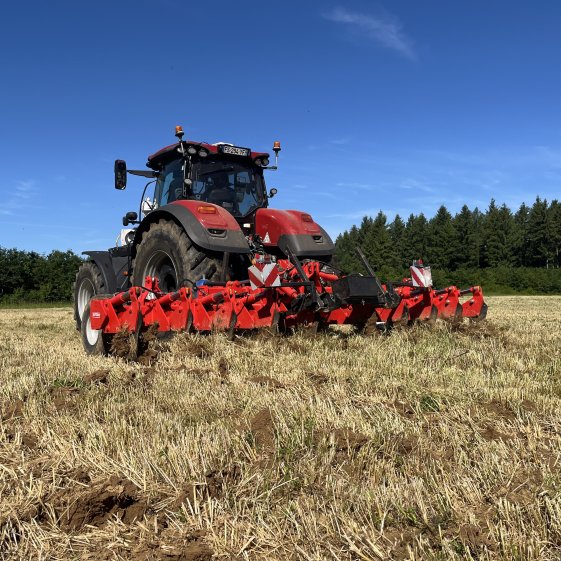

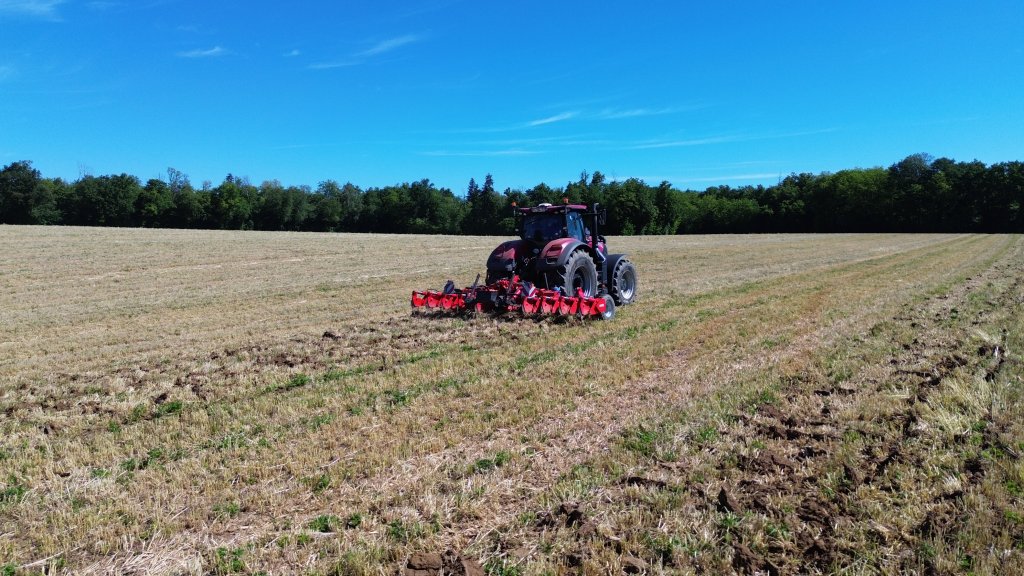

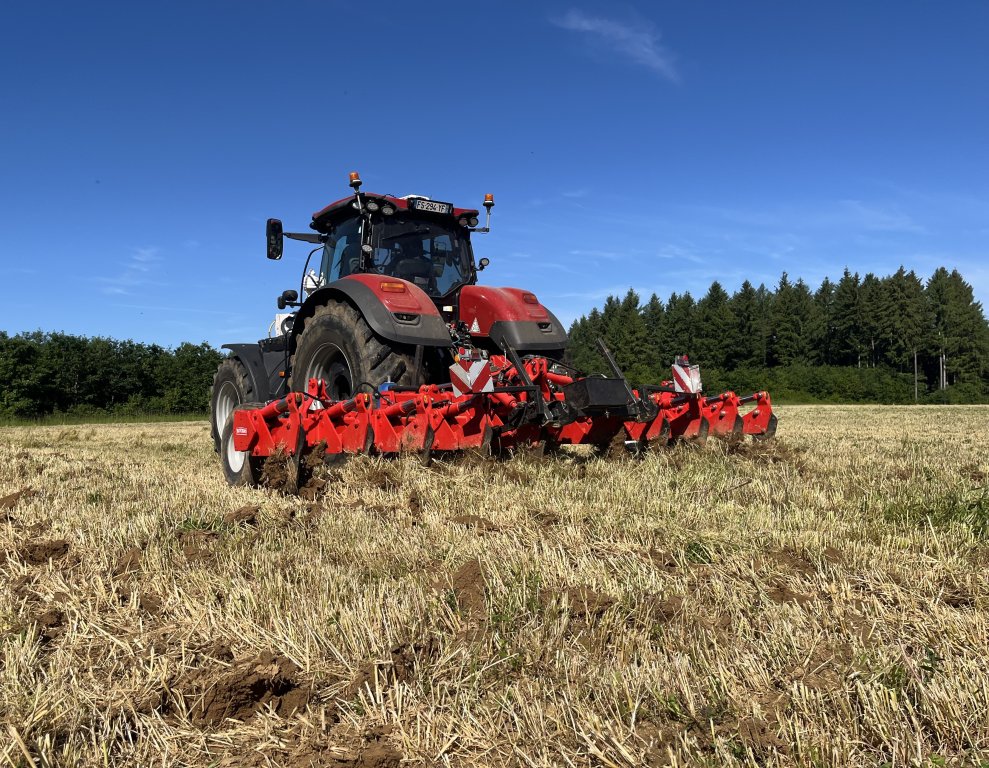

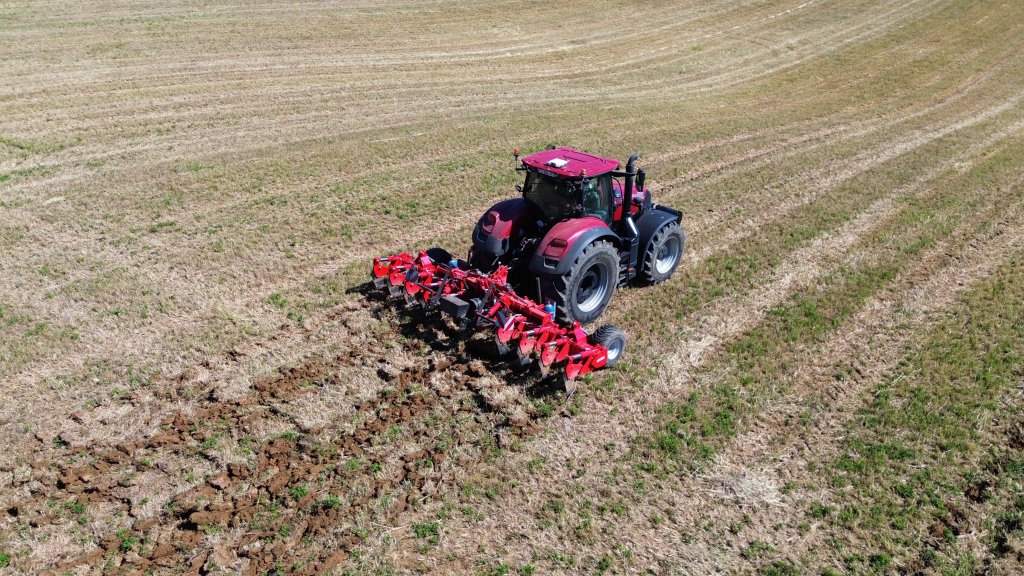

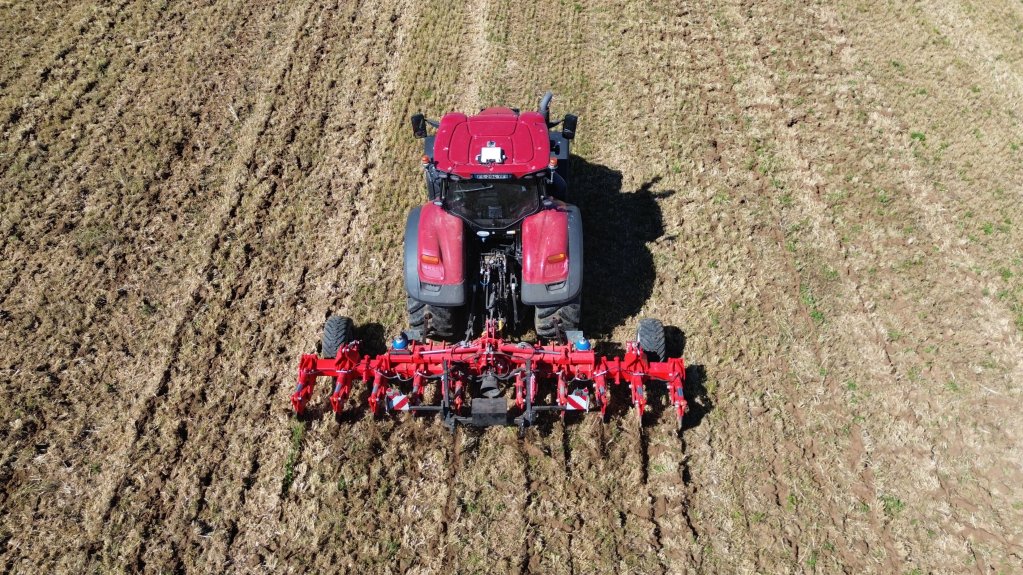

Utilisation Le sous soleur repliable, SUBEVO présente une largeur de travail de 4 à 6 mètres. Le SUBEVO brise la semelle de labour, favorise la croissance des racines et améliore le drainage des eaux de pluie.
Technical characteristics
Type Working width Tines Nbre Poids Information request
SUBEVO 400 4.00 m 6 1624 kg
SUBEVO 500 5.00 m 8 1907 kg
SUBEVO 600 6.00 m 10 2190 kg
+33 3 84 68 04 00
