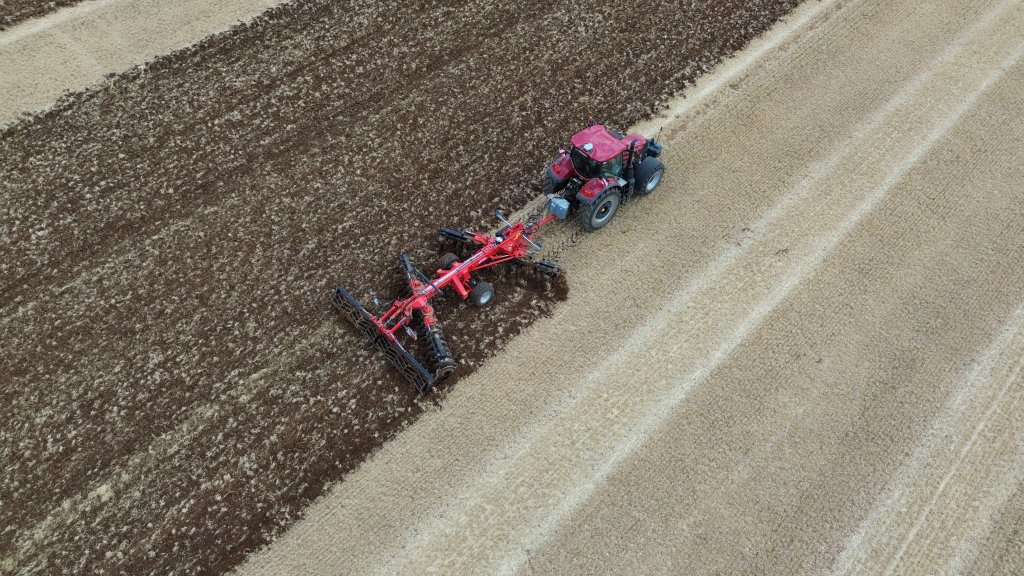

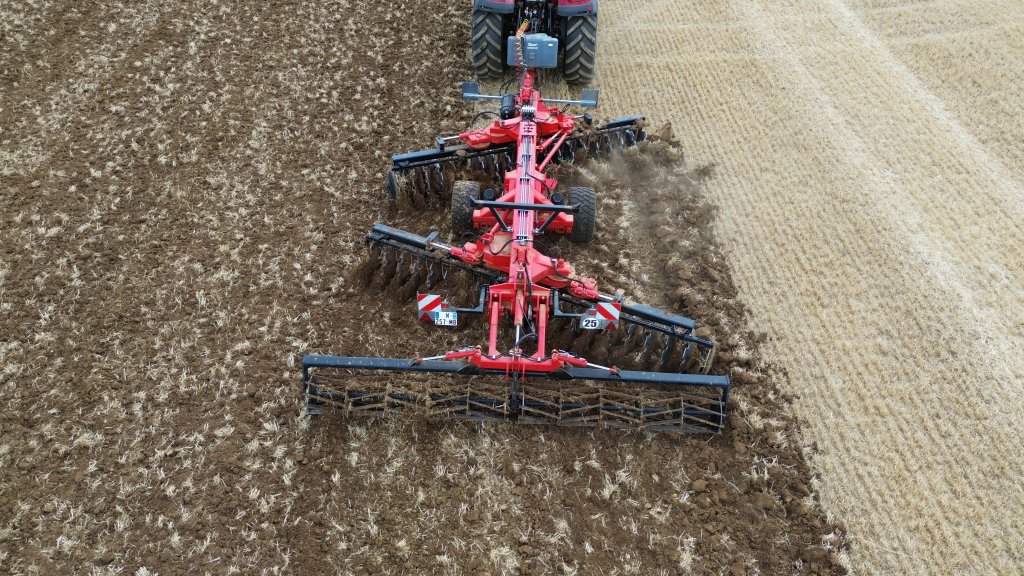

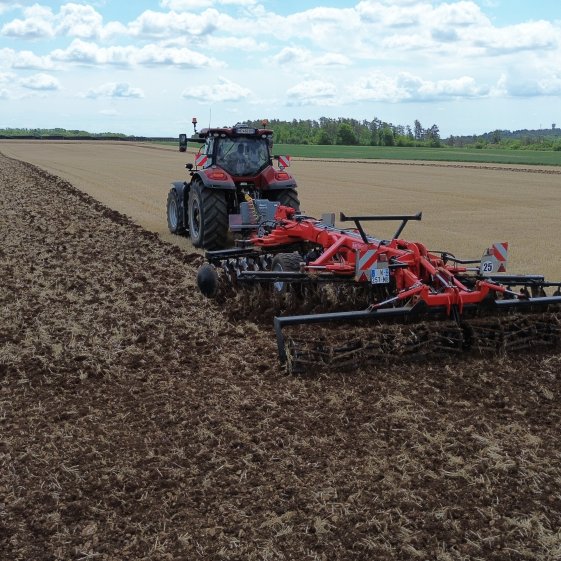

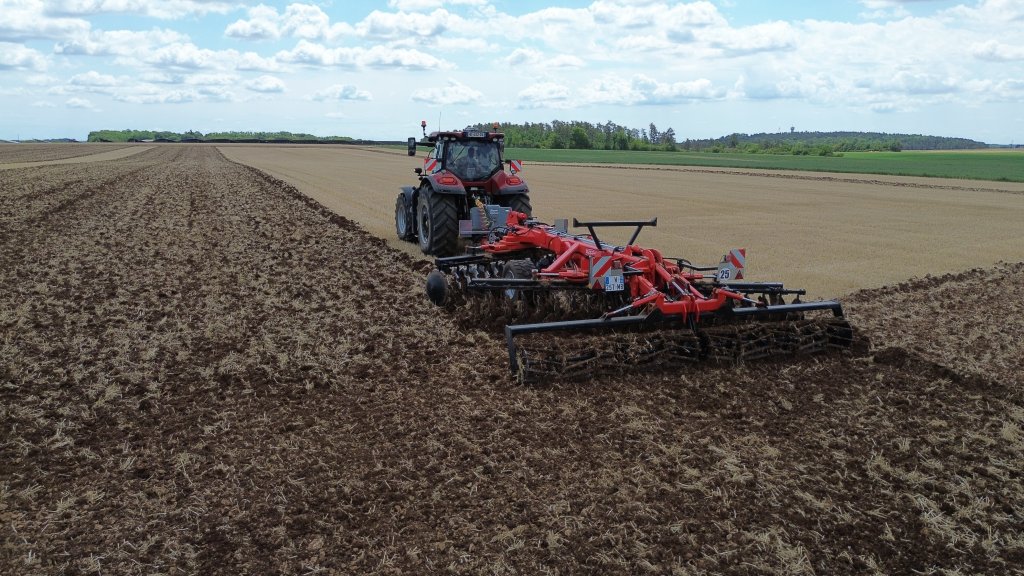

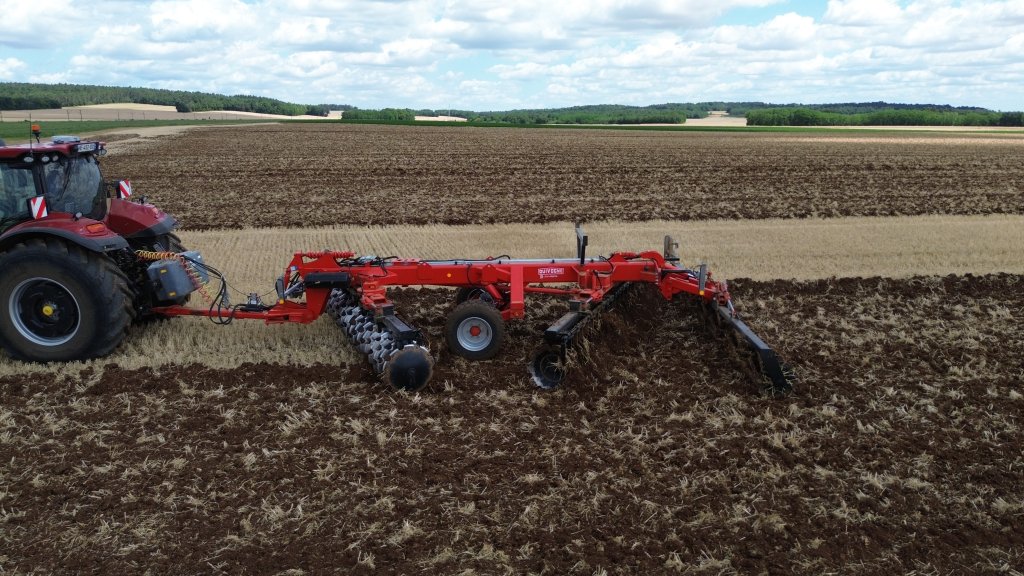

MONODISC-V

MONODISC V
Main Features This single beam disc-harrow in "V" is modern and efficient.
Single-beam driven "V" disc-harrow, from 28 to 48 discs, it's a very interesting machine for medium-sized cultures which are looking for efficiency and modernity. Simultaneous opening of the disc gangs from the tractor cab, scaling tool, depth adjustment through mechanical depth stop. Approved by the DRIRE and can be driven legally on the roads.
Working width 3,20 m to 5,20 m ; weight from 4 000 kg to 5 190 kg.
Technical specifications Oversized single-beam frame 300x300x10. Disc gangs in rectangular tube 160x120x8 with simultaneous opening from the tractor cab. Less curved patented discs Ø 610 or 660 at the attack to limit projections. Disc gangs mounted on triple waterproof conical bearings.Machine-welded reinforced brackets for bearings. Shafts in hardened steel, square 40 for discs Ø660 and square 50 for discs Ø710 in high-strength steel. Simultaneous opening adjustment of front and rear disc gangs. Notched discs at the front, smooth at the rear or alternated. Cylinder on drawbar with spring-shock absorbers. 2 wheels 295/60-22,5 with reinforced rims. Axle square 80, 6 axles. 2 lifting cylinders with hydraulic depth stop. Transport width lower than 3 m.
Utilisation Through the combination of jagged and smooth discs the MONODISC-V is ideal for
stubble cultivation under normal and heavy soil conditions. The disc spacing of 230 - 260 mm and special scrapers ensure blockage free working even with a large amount of residues. Deep soil mixing through V-shaped MONODISC-V arrangement of the disc sections.
Technical characteristics
Type Working width Discs Nbre Poids Information request
MONODISC-V 32-66-23 8 paliers 3,60 m 32 4 070 kg
MONODISC-V 36-66-23 10 paliers 4 m 36 4 330 kg
MONODISC-V 40-66-23 12 paliers 4,40 m 40 4 590 kg
MONODISC-V 44-66-23 12 paliers 4,90 m 44 4 760 kg
MONODISC-V 48-66-23 16 paliers 5,40 m 48 5 100 kg
